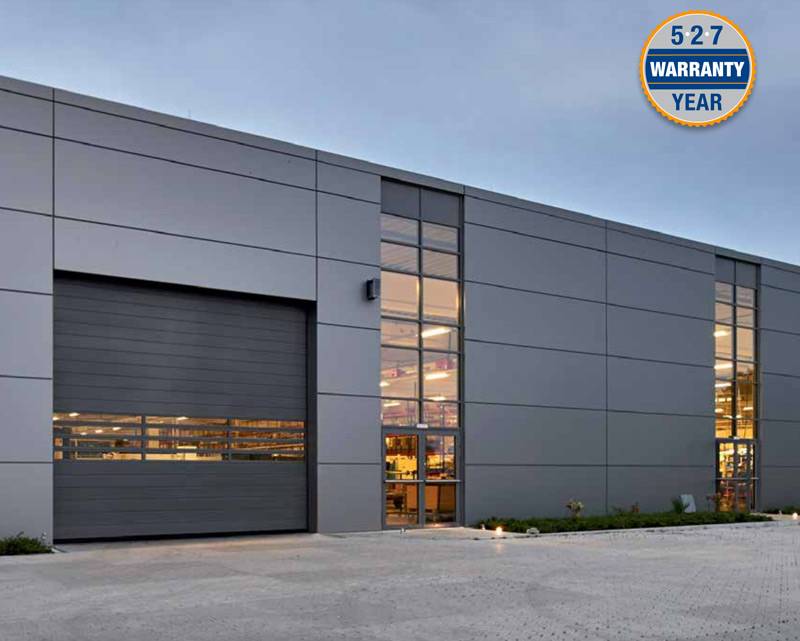

Urethane Insulated Panel Sections – Enhanced Thermal Efficiency
The 10″ high x 1-5/8″ thick panel slats made of hot-dipped galvanized steel, provide a durable and lasting surface. A urethane core with an R-value of 13.6 and U-value 1.04 (U-value of core and steel skin) provides optimum insulation, reduces loss of conditioned air and contributes to energy savings. Synthetic panel connectors provide an extremely smooth and quiet door operation, and improved thermal breaks located in the top and bottom of each slat provide even better thermal efficiency.
Exclusive Duratec® Insulated Windows – Clear or Tinted
In addition to clear windows, the Speed-Guardian™ 5000 is now available with tinted privacy windows, available in Obscured White or Smoke Gray (all window styles are optional). In addition, all window options are coated with our exclusive Duratec® finish which prevents marks and scratches caused by cleaning, and retain clear view after many cleanings. Our windows are insulated: 42 models are double-pane and 67 models are triple pane. The Speed-Guardian™ 5000 door is available with a complete vision panel, designed for the pleasing aesthetic appeal some applications require.

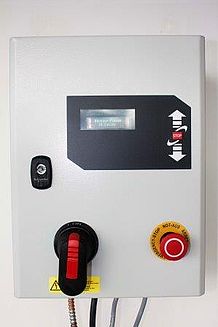

NEMA 4X Smart Start™ NXT Control Box – Standard
All 5000 models include our Smart Start™ NXT, NEMA 4X, control box as standard. The updated control box has a simplified wiring configuration and is more powerful with fewer components and cables as compared to the original Smart Start™. A distribution block accepts the activation and protection device wiring; main power cables fee through pre-drilled holes on the bottom of the box where the individual wires, with pre-wired removable terminal blocks, simply plug into the circuit board. There are extra ports on the control board allowing for firmware upgrades and future expansion. A USB port is included for maintenance monitoring.
Built-in Light Grid
The standard light grid is integral with the guide tracks making it less susceptible to damage by passing loads. This system enhances protection of personnel and goods and drastically reduces the likelihood of damage and repair to other parts of the door, saving on maintenance costs.
|Application / Size
Up to 21’4″ wide x 21’4″ high. Complete-view (CV) option available for doorways up to 18’0″ wide x 12’0″ high.
Comparing R-value and U-value
Guide tracks are made of hot-dipped galvanized steel and have an enclosed chain and integral light grid.
The chain requires no re-tensioning and is resistant to distension.
Optional: low-headroom track configuration available. Consult factory for more information.
