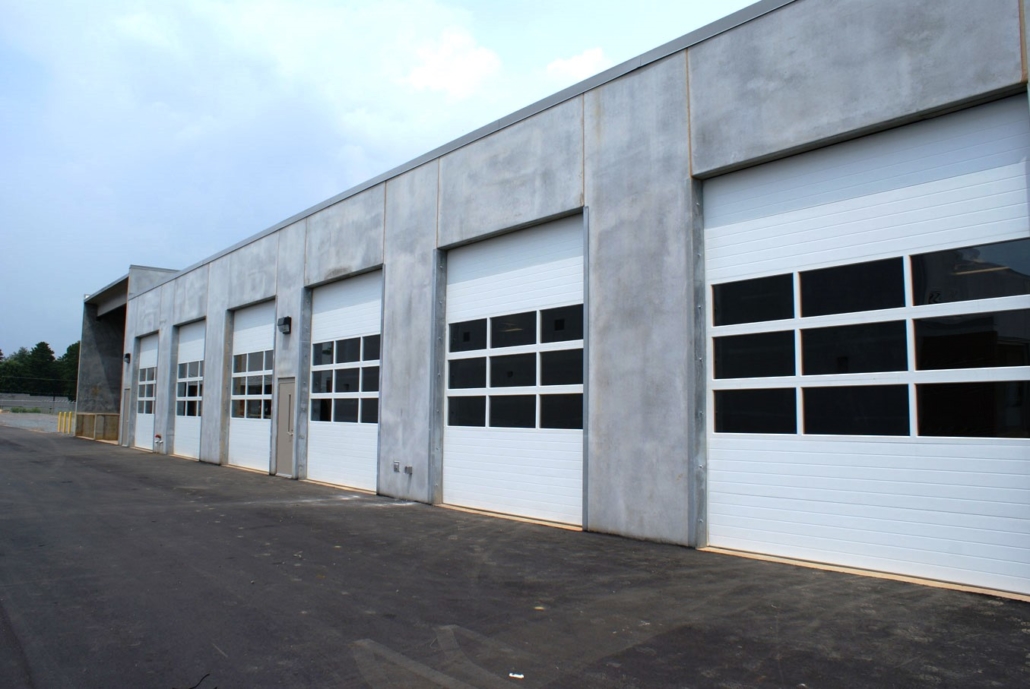

Commercial Micro-Grooved Polyurethane 3212

Constructed to provide dependable protection from the elements, these garage doors are designed to handle the most rugged commercial applications. A thermally-broken urethane core, encased in a 20-gauge steel front skin and a 27-gauge back, creates our strongest overhead door. When coupled with this door’s high R-value, you have a premium door available for toughness and environmental friendliness. The steel skins, track, and hardware are all 100% recyclable post-consumer, and the insulating qualities of this door conserve energy making our urethane core doors the right choice for green sustainable buildings and LEEDS projects.

3212 FEATURES

GARAGE DOOR FEATURES

2” Thick Sections
20 gauge commercial quality steel
CFC-free Polyurethane-filled sandwich construction
Four evenly spaced micro-grooves run horizontally across each section
Thermally-broken to eliminate thermal conduction
Max Width – 24’2″ (contact customer service for larger sizes)
Colors – White, stock RAL powder-coat option in 188 colors
R-value** 17.54
Various accessories and options available.

GARAGE DOOR SECTIONS

Features four evenly spaced micro-grooves that run horizontally across each section
Thermally-broken to eliminate thermal conduction
Gasket seal between sections provide for an extremely tight weatherseal
Concealed steel back-up plates run from top to bottom of each section for secure hardware attachment
Bottom “U” type astragal is a standard feature

Insulation:

Foamed-in-place CFC free polyurethane core permanently bonds the 20-gauge exterior and 27-gauge interior steel skins to form a rigid homogeneous section
R value 17.54 (R-value Testing is in accordance with ASTM C518 standards)

Colors:

Available in white
Optional Colors include RAL powder-coat in 188 colors

thermal-break

GARAGE DOOR TRACKS

Tracks are 2” or 3”, as specified
Available in bracket mount, angle mount, clip angle mount, 12” radius, 15” radius, high lift, vertical lift, roof pitch, or dual track low headroom
Optional one (1) piece 2” vertical lift track is available for doors 7’ to 10’ high

Track gauge:

2” Tracks – up to 8’-0” high = 17 gauge roll-formed galvanized steel
2” Tracks – 8’-0” 10’-0” = 16 gauge
2” Tracks – over 10’-0” = 14 gauge
3” Tracks – 12 gauge

chi2-3inchtrack

GARAGE DOOR HARDWARE

Package includes 11-gauge or 14-gauge hinges, as specified
2” or 3” long-stem or short-stem steel ball bearings rollers
Heavy-duty adjustable top roller brackets

double_end_hinges

GARAGE DOOR SPRINGS

Torsion springs are helically wound with oil-tempered wire
Springs are individually-calibrated for each door
Torsion tubes are galvanized for rust resistance
High-cycle spring options may be specified

com-springs

GARAGE DOOR LITES

Optional Window Designs:

24” x 6”, 24” x 12”, or 34”x16” lites with 1” insulated glass
Aluminum Frame to match size and panel layout of steel section – Optional field glazing, 1/8” DSB, 1/8″ polycarbonate, 1/8″ tempered glass, 1/4” tempered glass, 1/2” insulated glass or 1/2″ tempered insulated

OPTIONAL ACCESSORIES

Doors are available with a variety of Specialty Options for specific installation needs. Contact Factory for additional options.

Swing-Up Sectional Post

A perfect answer for openings that are too large for a single overhead door that must accommodate large machinery or equipment on an infrequent basis. Operating on a single pivot point that is designed to swing left or right, it allows the use of one (1) smaller door for everyday requirements and the full opening when needed. See Video

Pass Doors

Whether it’s for convenience or necessity, there are circumstances where a pass-through door is requested to provide ingress and egress in an overhead door enclosed opening without having to open the overhead door. C.H.I. can accommodate this need with a state-of-the-art design pass-door option. Available in our urethane core models 3216 and 3212, it’s the ideal choice to solve this need.

Header & Jamb Seals

Seal the perimeter of the opening to provide additional air infiltration and thermal protection.

top_seal door-with-a-door-3212 overhead-door-swing-post

WINDLOAD

Wind can be unpredictable and destructive. This is why C.H.I. Windbreaker Series and iSeries doors are designed, tested, and built to the most rugged specifications. Wind chamber tested to ensure windload resistance, these extra-sturdy designs provide enhanced defense against the elements.

C.H.I. Overhead Doors developed the resilient Windbreaker Series garage doors to protect against high wind conditions. The super-resilient C.H.I. iSeries Impact Approved doors have strength designed to withstand direct collision of projectiles and other windborne debris at high speeds.
